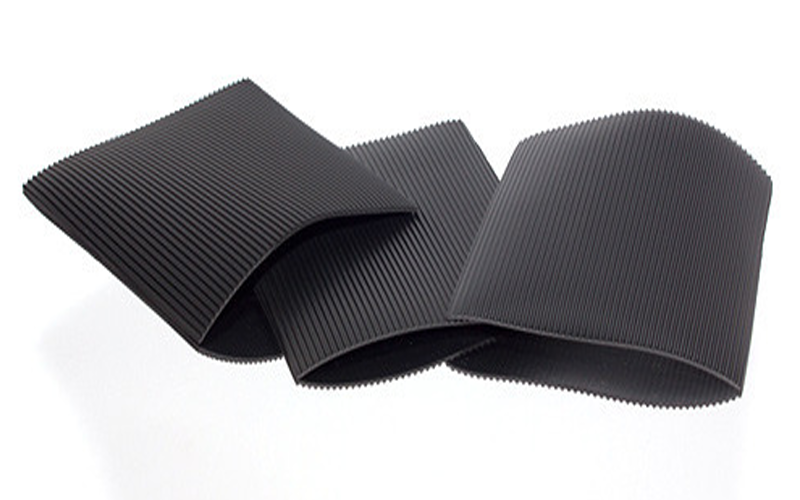

Sandwich Rubber Sheets
Sandwich is multi-facet rubber sheet
particularly intended for mining industry. Its top and base layer are high
scraped spot and cut opposition for dealing with mining materials and its
inward layer is to give backing to deal with mining material easily
| Sandwich Rubber Sheets | |
Features | Superior resistant to dry abrasion and high impact. Excellent cut and gouge properties when sharp, heavy coarse particles present. Unique two colour abrasion resistant compounds enables handling mining material and inner layer support to mining material. |
Applications | Lining of chutes, vessels, transfer points, vibratory feeders, impact chutes, distribution bins and sumps when critical wear monitoring is required. |
Finish Type | Both sides smooth finish. |
Standard Thickness | 1 mm to 40 mm |
Standard Length | 10 Mtr, 33 Ft, 11 Yard |
Standard Width | 1.2 / 1.4 / 1.5 Mtr, 48" / 54" / 60" inches |
Color | Red |
| Technical Specification | ||||||
| Code | Specific Gravity | Hardness (+/- 5) | Tensile Strength | Elongation | Abrasion | Temperature |
| Gm/cm3 | Shore A | Kg/cm2 | % | mm3 | °C | |
STANDARD | ASTM D297 | ASTM D2240 | ASTM D412 | ASTM D412 | ASTM D5963 | --- |
SW 64110 | 1.15 | 60-40-60 | 150 | 500 | 100 | -25 to +70 |
SW 60110 | 1.14 | 60-40-60 | 150 | 450 | 120 | -25 to +70 |
